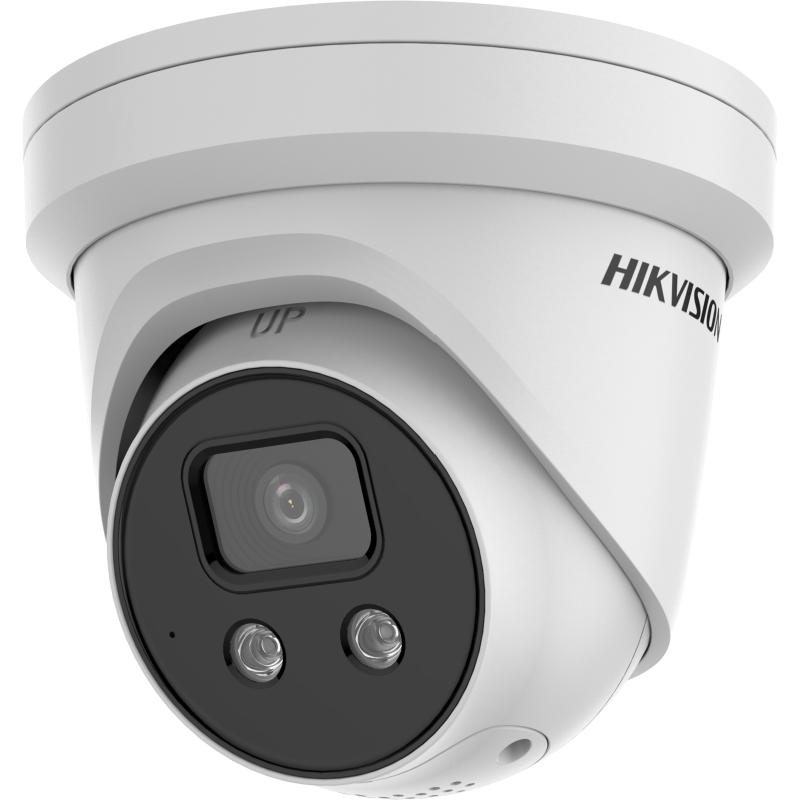

IP Kamera 8MP DS-2CD2386G2-ISU/SL
- Ražotājs:
- Modelis:DS-2CD2386G2-ISU/SL
- SKU:DS-2CD2386G2-ISU/SL
- Pieejamība:10 pcs.
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- P/NP/N
- Wide Dynamic Range120 dB
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Max. Resolution3840 × 2160
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Iris TypeFixed
- Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
- ApertureF1.6
- Lens MountM12
- DORI
- DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
- Illuminator
- Supplement Light TypeIR
- IR RangeUp to 30 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Visual AlarmYes
- Supplement Light RangeUp to 30 m
- Video
- Max. Resolution3840 × 2160
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Image
- SNR≥ 52 dB
- Target CroppingYes
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Interface
- Alarm1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
- Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone
- Built-In MicrophoneYes
- Built-In SpeakerPower: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
- Hardware ResetYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
