Electric Car Charging Station, Type 2, 22kW, 32A, 3-phase
- Ražotājs:
- Modelis:EV200092
- Pieejamība:5 pcs.
680,00€
Noliktavā (5)

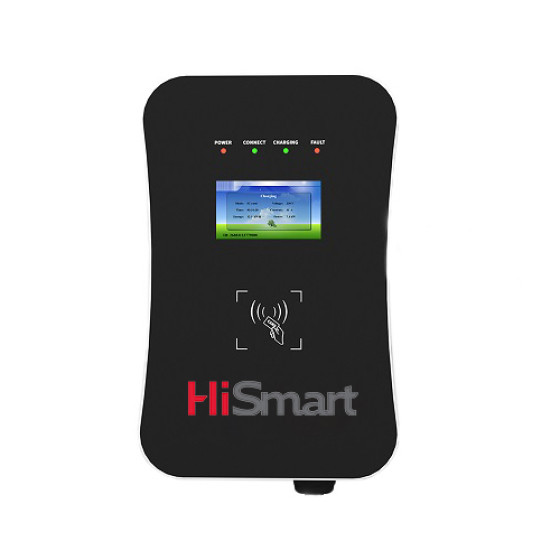

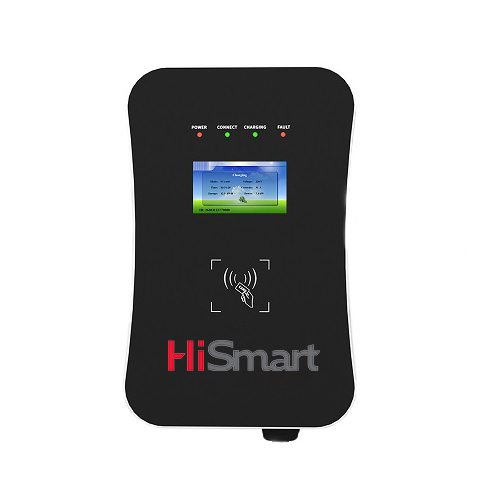

Charging station for electric cars Mode3, 22kW, 32A, 3-phase, with Type 2 connector, without charging cable, wallbox, RCD, IP65 (for indoor and outdoor conditions), IK08.
Features: The charging station allows charging up to 22kW. Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).
Specifications: Max. charging current: 32A (3-phase). Max. charging power: 22kW (3-phase). Input: 380V +/- 20V AC (3-phase), 32A (max.), 50 / 60Hz. Output: IEC 62196, Type2 (European), Mennekes, 7 contacts. Charging control: Plug & Play / RFID card. Screen: 4.3-inch LCD screen. 4 LED indicators: voltage / connection / charging / error. Housing material: metal plate. Front panel: tempered glass. Screen color: black. Operating temperature: -30°C-55°C. Operating humidity: <95% RH. Storage temperature -40°C to + 75°C. Safety class: IP65 (adapted to indoor and outdoor conditions), IK08. Protection: RCD (Residual Current Device). Protection against: overheating, over-voltage, overload, under-voltage, short circuit, surge, earth-leakage; ground protection. Cooling: natural. Dimensions: 410 x 260 x 164 mm. Weight: <12 kg.
Warranty: 24 months.
Features: The charging station allows charging up to 22kW. Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).
Specifications: Max. charging current: 32A (3-phase). Max. charging power: 22kW (3-phase). Input: 380V +/- 20V AC (3-phase), 32A (max.), 50 / 60Hz. Output: IEC 62196, Type2 (European), Mennekes, 7 contacts. Charging control: Plug & Play / RFID card. Screen: 4.3-inch LCD screen. 4 LED indicators: voltage / connection / charging / error. Housing material: metal plate. Front panel: tempered glass. Screen color: black. Operating temperature: -30°C-55°C. Operating humidity: <95% RH. Storage temperature -40°C to + 75°C. Safety class: IP65 (adapted to indoor and outdoor conditions), IK08. Protection: RCD (Residual Current Device). Protection against: overheating, over-voltage, overload, under-voltage, short circuit, surge, earth-leakage; ground protection. Cooling: natural. Dimensions: 410 x 260 x 164 mm. Weight: <12 kg.
Warranty: 24 months.
