Electric Car Charging Station Duosida, Type 2, 22kW, 32A, 3-phase, 5m
- Ražotājs:
- Modelis:EV200580
- Pieejamība:5 pcs.
849,99€
Noliktavā (5)

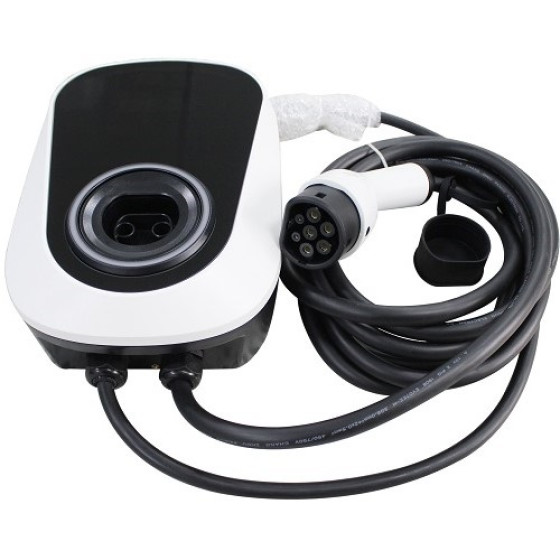

Charging station for electric cars 22kW, 32A, 3-phase, with Type 2 connector, floor-mounted, wallbox, IP54 (for indoor and outdoor conditions).
Features: The charging station allows charging up to 22kW.5 meter long charging cable for electric cars.Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).
Specifications: Max. charging current: 32A (3-phase).Max. charging power: 22kW (3-phase).Input: 380V-415V AC (3-phase), 32A (max.), 50 / 60Hz.Output: IEC 62196, Type2 (European), Mennekes, 7 contacts.Charging control: Plug & Play / RFID card / app.Screen: OLED screen.Housing material: metal plate.Front panel: tempered glass.Cable length: 5m.Screen color: black.Operating temperature: -30°C - +50°C.Operating humidity: <90% RH.Safety class: IP54 (adapted to indoor and outdoor conditions).Protection against: overheating, over-voltage, overload, under-voltage, short circuit,surge, earth-leakage; ground protection.Dimensions: 450 x 310 x 300 mm.Weight: 9 kg.
Warranty: 24 months.
Features: The charging station allows charging up to 22kW.5 meter long charging cable for electric cars.Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).
Specifications: Max. charging current: 32A (3-phase).Max. charging power: 22kW (3-phase).Input: 380V-415V AC (3-phase), 32A (max.), 50 / 60Hz.Output: IEC 62196, Type2 (European), Mennekes, 7 contacts.Charging control: Plug & Play / RFID card / app.Screen: OLED screen.Housing material: metal plate.Front panel: tempered glass.Cable length: 5m.Screen color: black.Operating temperature: -30°C - +50°C.Operating humidity: <90% RH.Safety class: IP54 (adapted to indoor and outdoor conditions).Protection against: overheating, over-voltage, overload, under-voltage, short circuit,surge, earth-leakage; ground protection.Dimensions: 450 x 310 x 300 mm.Weight: 9 kg.
Warranty: 24 months.
