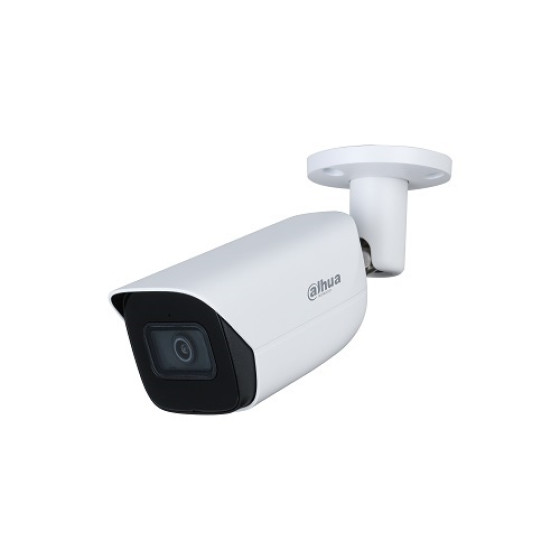

DAHUA IP Камера STARLIGHT HFW3441E-S-S2 3.6mm
Доставка: 2 - 6 дней
141.03€
Быстрая доставка
Обработка и отправка товара от 2 до 6 дней
Бесплатная доставка от 200 евро
Заказ на сумму 200 евро и выше доставим бесплатно
| Camera | |||||
| Image Sensor | 1/3" CMOS | ||||
| Max. Resolution | 2688 (H) Ч 1520 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 512 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
||||
| S/N Ratio | >56 dB | ||||
| Illumination Distance | 50 m (164.04 ft) | ||||
| Illuminator On/Off Control | Auto/Manual | ||||
| Illuminator Number | 1 (IR LED) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 3.6 mm | ||||
| Max. Aperture | F1.4 | ||||
| Field of View | 3.6 mm: Horizontal:88°; vertical: 44°; diagonal: 105° |
||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) |
||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6 mm | 85.4 m (280.18 ft) |
34.2 m (112.20 ft) |
17.1 m (56.10 ft) |
8.5 m (27.89 ft) |
|
| Intelligence | |||||
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) | ||||
| AI SSA | Yes | ||||
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events | ||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+ Smart H.264+ |
||||
| AI Coding | AI H.265 AI H.264 |
||||
| Video Frame Rate | Main stream: 2688 Ч 1520 @ (1–25/30) fps Sub stream 1: 704 Ч 576 @ (1–25 fps)/704 Ч 480 @ (1–30 fps) Sub stream 2: 1920 Ч 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
||||
| Stream Capability | 3 streams | ||||
| Resolution | 4M (2688 Ч 1520); 3.6M (2560 Ч 1440); 3M (2048Ч1536); 3M (2304Ч1296); 1080p (1920 Ч 1080); 1.3M(1280 Ч 960); 720p (1280 Ч 720); D1 (704 Ч 576/704Ч480); CIF (352 Ч 288/352 Ч 240); VGA (640 Ч 480) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| Scene Self-adaptation (SSA) | Yes | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Defog | Yes | ||||
| AFSA | Yes | ||||
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688Ч1520 resolution and lower) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Built-in MIC | Yes | ||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||
| Alarm | |||||
| Alarm Event | - AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception -S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | ||||
| Browser | IE: IE11 Chrome Firefox |
||||
| Management Software | Smart PSS; DSS; DMSS | ||||
| Mobile Client | IOS; Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||
| Port | |||||
| Audio Input | 1 channel (RCA port) (Only - AS supports) | ||||
| Audio Output | 1 channel (RCA port) (Only - AS supports) | ||||
| Alarm Input | 1 channel in: 5 mA 3–5 VDC (Only - AS supports) | ||||
| Alarm Output | 1 channel out: 300 mA 12 VDC (Only - AS supports) | ||||
| Power | |||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||
| Power Consumption | Basic: 3.8 W (12 VDC); 4.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
||||
| Environment | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95%RH | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing | Metal | ||||
| Product Dimensions | 192.7 mm Ч 70.5 mm Ч 66.4 mm (7.59" Ч 2.77" Ч 2.61") (L Ч W Ч H) |
||||
| Net Weight | 590 g (1.30 lb) | ||||
| Gross Weight | 780 g (1.72 lb) |
