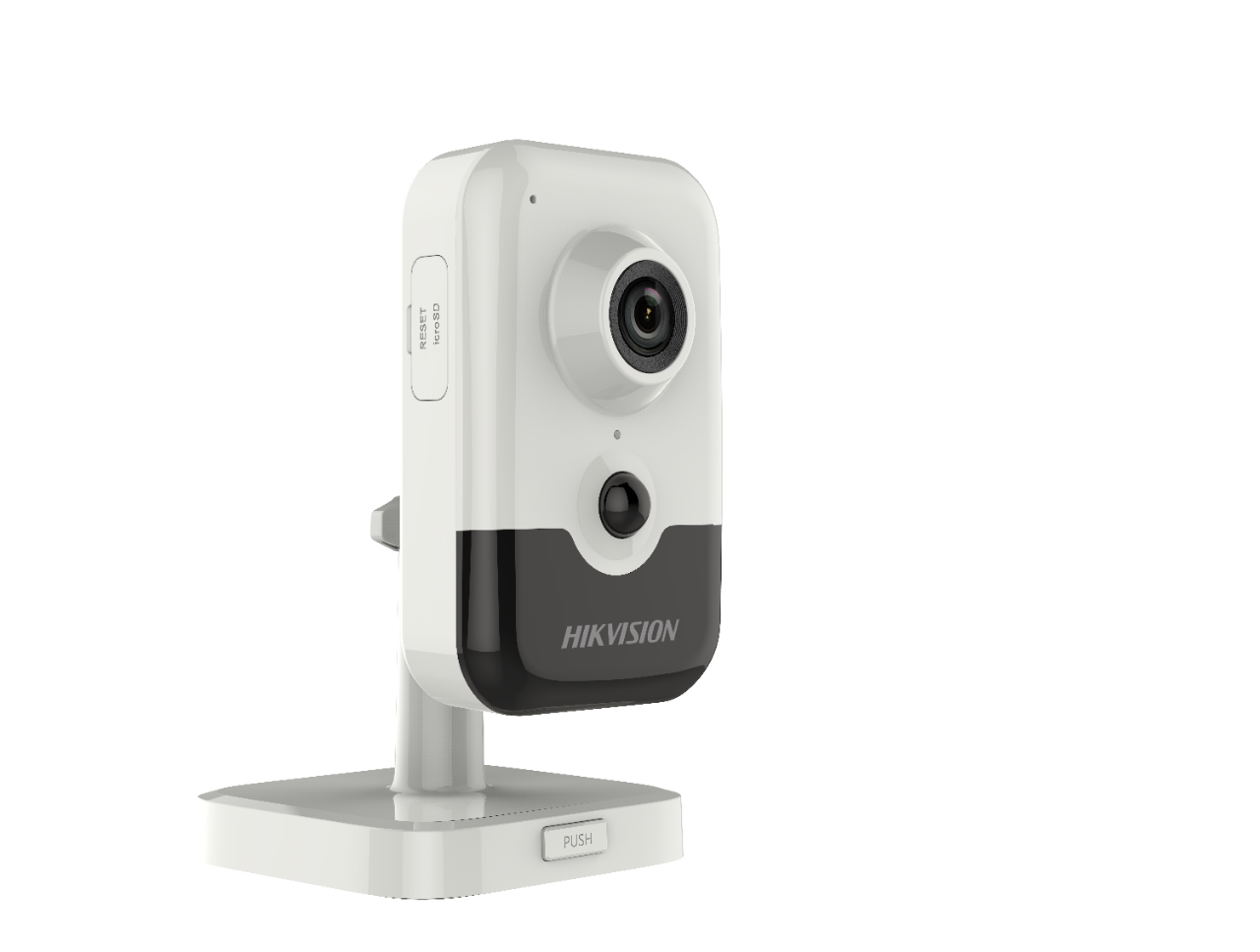

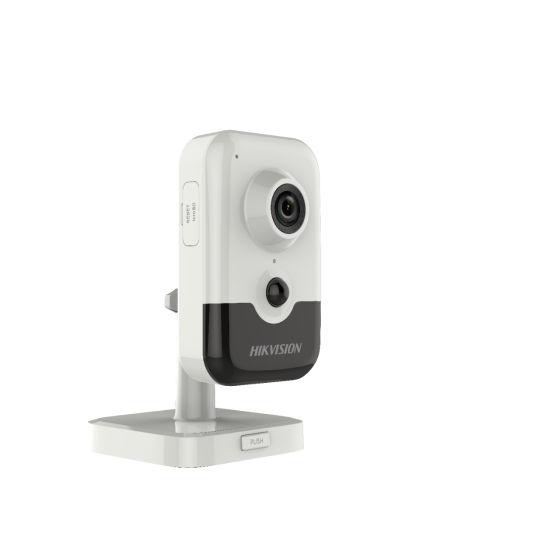

IP Камера 2MP DS-2CD2421G0-I

  • Производитель:
  • Модель:
    DS-2CD2421G0-I
  • Артикул:
    DS-2CD2421G0-I
  • Доступно:
    10 шт.
98.20€
Есть в наличии (10)
  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. Illumination

    2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR

    2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

  • Shutter Time1/3 s to 1/100, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal length, 2, 2.8, and 4 mm optional
  • Focal Length & FOV

    2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4°

    2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6°

    4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

  • Aperture

    2 mm: F2.25

    2.8 mm: F1.6

    4 mm: F1.6

  • Iris TypeFixed
  • Lens MountM12
  • DORI
  • DORI

    2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m

    2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m

    4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m

  • Illuminator
  • Supplement Light RangeUp to 10 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)

    Yes

  • Region Of Interest (ROI)1 fixed region for main stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Wide Dynamic Range (WDR)120 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, 3D DNR
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Transducer
  • PIR AngleHorizontal: 90°, vertical: 80°
  • PIR RangeUp to 8 m
  • Interface
  • Built-In MicrophoneYes
  • Built-In SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
  • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • Smart EventLine crossing detection, intrusion detection
  • LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
  • General
  • Power

    -I:

    12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
