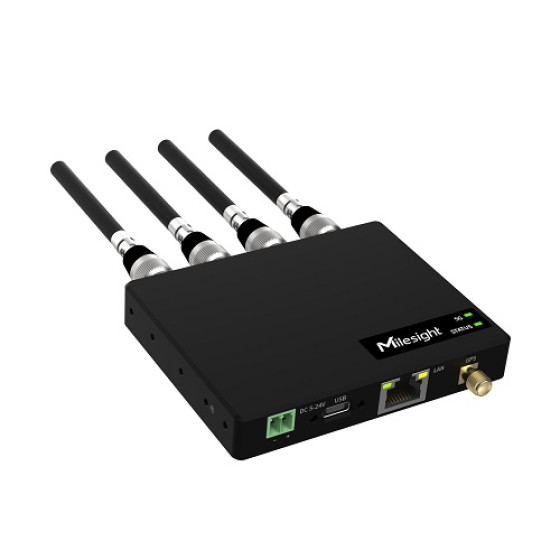

Modem 5G, 4G LTE
Features: High performance modem for 5G wireless networking applications. It supports 5G NSA&SA, 4G LTE and 3G networks from telecom service providers of most countries in the world. Especially applicable in IoT and robotics. This modem offers a 4G to 5G migration solution for mobility, embedded system, and general-purpose applications in the most economical and effortless way. The USB Type-C port and Ethernet port are adapted to provide high-speed internet access for field devices. The USB Type-C interface can also be used for power supply, network supply and debug. Wide signal coverage and superb download speed up to 4.13Gbps. Plug&Play: no configuration is required, no need software installation, delivers 5G connection just plugging to the devices (machines, robots), as long as there is power. Installed equipment watchdog - automatic recovery after various failures (failover/failback). Easy maintenance for the administrator: simple setup, mass configuration, centralized management of remote devices. With its compact pint-size and industrial design, the modem is easy to carry out or embed to any equipment, such as the interior of machines or robots. It is especially suitable for smart offices, video surveillance, digital media implementations, industrial automation, traffic applications, robots and so on.
Technical data: Hardware: CPU: Qualcomm 4-core ARM Cortex-A55, 2GHz. Memory: RAM 1GB LDDR4X + 1GB NAND Flash. Cellular interface: Network: 5G NR SA & NSA/ 4G LTE/ WCDMA. Frequencies: 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79. LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32. LTE TDD: B38/B40/B41/B42/B43/B46. WCDMA: B1/B5/B8. Antennas: 4x (50? SMA F connectors). SIM slot: 1x micro SIM-3FF. Ethernet interface: Ports: 1x LAN. Speed: 10/100/1000Mbps. GNSS: Antenna: 1 (50 ohm SMA F connector). Technologies: GPS/ GLONASS/ Beidou/ Galileo/ QZSS. Software: Network protocols: IPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet, SSH etc. Security: access control, port mapping, custom rules. Other: Supply voltage: 5-24V DC / 5V, 3A via USB Type-C interface. USB: 1x USB Type-C 3.0 (data transfer, power supply, network supply and debug). Energy consumption: 3.9W. Power connector: 2-pin 3.5mm. Reset button: 1. LED indicators: 1x status, 1x 5G connection. Safety class: IP30. Operating temperature: -20°C~+50°C. Operating humidity: 0-95%RH (non-condensing). Housing material: metal. Installation: desktop, wall-mounting, DIN rail mounting, embedded installation. Size: 90x72x15mm. Color: black.
Warranty: 24 months.
