Features:

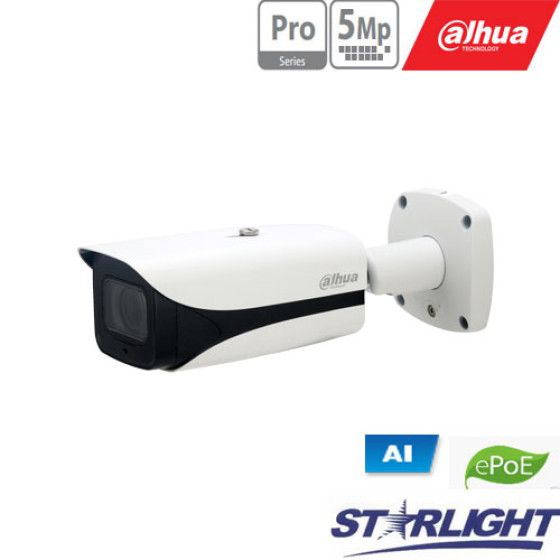

This camera features a 1/2.7" 5Megapixel progressive scan CMOS sensor.
It supports H.265 & H.264 triple-stream encoding.
It provides 20 fps at 2592 × 1944 resolution and 50/60 fps at 1080P (1920 × 1080).
Key imaging technologies include WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, and BLC.
It supports multiple network monitoring methods including Web viewer, CMS (DSS/PSS), and DMSS.
It features a 2.7 mm–13.5 mm motorized vari-focal lens.
It includes 2 alarm inputs, 1 alarm output, and 1 audio input/output.
The maximum IR distance is 50 meters.
It features Micro SD card storage and IP67 weather resistance.
Technical Specifications:
Camera:
The image sensor is a 1/2.7" 5Megapixel progressive scan CMOS.
Effective pixels are 2592 (H) × 1944 (V).
It has 1 GB RAM and 128 MB ROM.
The scanning system is progressive.
Electronic shutter speed is Auto/Manual from 1/3 s to 1/100000 s.
Minimum illumination is 0.005 Lux@F1.5.
The IR distance reaches up to 50 m (164 ft).
IR control can be set to Auto or Manual.
It is equipped with 4 IR LEDs.
Lens:
The lens type is motorized vari-focal with a board-in mount type.
The focal length ranges from 2.7 mm to 13.5 mm.
The maximum aperture is F1.5.
The angle of view at 2592 × 1944 resolution is H: 100°–28° and V: 72°–21°.
The angle of view at 2688 × 1520 resolution is H: 104°–29° and V: 55°–16°.
The aperture type is Auto.
The close focus distance is 0.8 m (2.62 ft).
The pan range is 0°–360°, tilt range is 0°–90°, and rotation range is 0°–360°.
Artificial Intelligence:
It supports face detection and image capture.
Face attributes extraction includes 6 types: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, and Moustache & Beard.
Perimeter protection includes: Tripwire, intrusion (vehicle and people recognition), fast moving, loitering detection, parking detection, and people gathering.
People counting supports line crossing, region, and queueing counting with 4 independent access detections and 4 independent area detections.
General Intelligence:
Event triggers include: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, and Storage anomaly.
It supports Object Abandoned/Missing detection.
It features Heat Map functionality.
Video:
Compression formats include H.265, H.264, H.264B, H.264H, and MJPEG (sub stream).
Smart Codec is supported.
Streaming capability supports 3 streams.
Resolutions include: 2592 × 1944, 2688 × 1520, 2560 × 1440, 2304 × 1296, 1080P (1920 × 1080), 1.3M (1280 × 960), 720P (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 ×480), and CIF (352 × 288/352 × 240).
Frame rates are: Main Stream: 2592 × 1944 (1–20 fps), 2560 × 1440 (1–25/30 fps), 1920 × 1080 (1–50/60 fps); Sub Stream: D1 (1–20/30 fps), D1 (1–50 fps); Third Stream: 1080P (1–17 fps).
Bit rate control supports CBR/VBR.
Bit rates are H.264: 32 Kbps–8192 Kbps and H.265: 19 Kbps–8192 Kbps.
Day/Night mode includes Auto(ICR), Color, and B/W.
BLC modes include BLC, HLC, and WDR (120 dB).
White balance options are Auto, Natural, Street Lamp, Outdoor, and Manual.
Gain control can be Auto or Manual.
Noise reduction uses 3D DNR.
Motion detection supports 4 rectangular zones and can be turned Off/On.
Region of Interest supports 4 zones and can be turned Off/On.
Electronic Image Stabilization (EIS) is supported.
Smart IR is supported.
Defog is supported.
Flip options are 0°, 90°, 180°, and 270°.
Mirror can be turned Off/On.
Privacy masking supports 4 rectangular areas and can be turned Off/On.
Audio:
Audio compression formats include G.711a, G.711Mu, AAC, G.726, and G.723.
Network:
The Ethernet interface is RJ-45 (10/100 Base-T).
Supported protocols include: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, and SNMP.
Interoperability includes ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, and P2P.
Streaming methods are Unicast and Multicast.
Maximum user access supports 20 users.
Edge Storage:
Storage options include NAS, FTP, SFTP, and Micro SD card (up to 256 GB).
Web viewers supported are IE (versions newer than IE8), Chrome, Firefox, and Safari (versions newer than Safari 12).
Management software includes Smart PSS, DSS, and DMSS.
Smartphone support includes iOS and Android.
Certifications:
CE-LVD: EN60950-1.
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU.
FCC: 47 CFR FCC Part 15, Subpart B.
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07.
Interface:
Audio Interface has 1 channel In and 1 channel Out.
RS485 is not available.
Alarm has 2 channels In: 5mA 5V DC and 1 channel Out: 300mA 12V DC.
Electrical:
Power supply options are DC 12V (±30%) or PoE (802.3af) (Class 0).
Power consumption is less than 10.9W.
Environmental:
Operating conditions are -30°C to +60°C (-22°F to +140°F) with less than 95% RH.
Storage conditions are -30°C to +60°C (-22°F to +140°F).
Ingress Protection is IP67.
Construction:
The casing is metal and plastic.
Dimensions are 273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”).
Net weight is 1.11 kg (2.44 lb).
Gross weight is 1.51 kg (3.33 lb).
