System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded Linux OS |
|
Button Type |
Mechanical |
|
Number of Buttons |
1 |
|
Interoperability |
ONVIF; CGI |
|
Network Protocol |
IPv4; RTSP; UDP; DNS; P2P; RTP; TCP; SIP |
|
Basic |
|
|
Camera |
1/2.8" 2 MP CMOS high definition, low illumination/WDR/color/IR |
|
Field of View |
H: 125°; V: 71°; D: 142° |
|
WDR |
120 dB |
|
Noise Reduction |
3D NR |
|
Video Compression |
H.264; H.265 |
|
Video Resolution |
Main stream: 720p, WVGA, D1, CIF |
|
Video Frame Rate |
PAL: 25 fps; |
|
Video Bit Rate |
256 Kbps–8 Mbps |
|
Light Compensation |
Auto IR |
|
Day/Night |
Auto(ICR)/Color/B/W;Color/B/W |
|
Audio Compression |
G.711a; G.711u; PCM |
|
Audio Input |
1 |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
Two-way audio |
|
Audio Enhancement |
Echo suppression/digital noise reduction |
|
Audio Bit Rate |
16 KHz, 16 Bit |
|
Function |
|
|
Communication Mode |
Full digital |
|
Unlock Mode |
Card; app; indoor monitor |
|
Card Type |
IC card |
|
Auto Snapshot |
Yes |
|
Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
|
Wi-Fi |
Yes |
|
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
|
Wireless Frequency Range |
2.4GHz |
|
Storage |
Supports Micro SD card (up to 256 GB) |
|
Web Configuration |
Yes |
|
Performance |
|
|
Card Reading Distance |
0 cm–4.3 cm (0"–1.69") |
|
Issue Card Locally |
Yes |
|
Casing Material |
PC + Acrylic |
|
Capacity |
|
|
Card Capacity |
10000 |
|
Port |
|
|
RS-485 |
1 |
|
Alarm Input |
1 |
|
Alarm Output |
1 |
|
Power Output |
1 port, 12 V and 200 mA |
|
Exit Button |
1 |
|
Door Status Detection |
1 |
|
Lock Control |
1 port, normally closed by default |
|
Network Port |
1 × 10/100 Mbps network port |
|
Alarm |
|
|
Tamper Alarm |
Yes |
|
General |
|
|
Appearance Color |
Black plate and silvery frames |
|
Power Supply |
12 VDC, 1 A |
|
Power Adapter |
Optional |
|
Installation |
Surface Mount |
|
Certifications |
CE |
|
Accessory |
Included: Alarm power ribbon cable, brackets |
|
Product Dimensions |
150.0 mm × 100.0 mm × 25.4 mm (5.91'' × 3.94'' × 1.00'') |
|
Protection |
IP65 (silicone sealant is needed, see the quick start guide) |
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
|
Operating Humidity |
10%–90% (RH), non-condensing |
|
Operating Environment |
Outdoor |
|
Operating Altitude |
Beneath 3000 m (9842.52 ft) |
|
Power Consumption |
? 1 W (standby), ? 7 W (working) |
|
Gross Weight |
510 g (1.12 lb) |
|
Anti-corrosion Level |
Basic Protection |
|

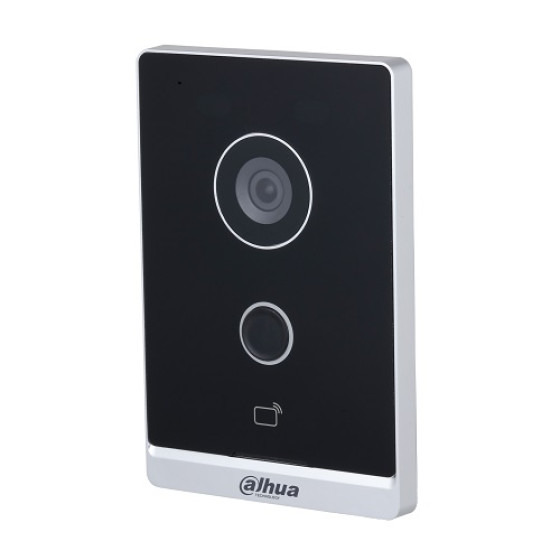

MODEL |
VTO2211G-WP-S2 |
