FoxSec® products provide a complete and fully featured hardware/firmware infrastructure for access control,
intruder alarm systems and locker system.

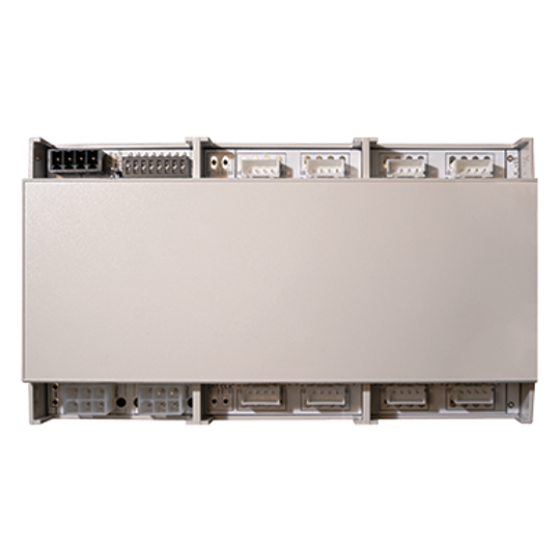

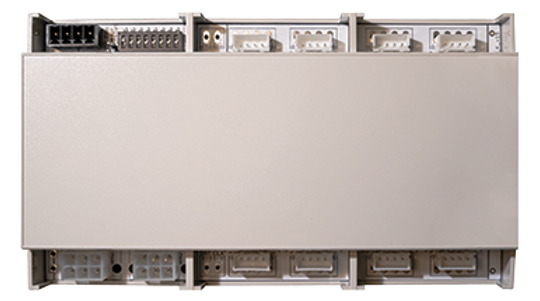

The FS908L lock expander module has 8 status inputs, 8 PGM outputs and all i/o has status LED for quick check
on installation. Easy to install and it is maintenance free.
The FS908L lock connects to FoxSec FS9011 main panel directly thru CAN dataline.
CAN dataline can be up to 1500m (4900 feet)
Each module uses an address and it is changable by dip switch on the pcb.
8 PGM outputs for lock
Status LED’s for easy visual diagnostics of troubles, status states etc.
Can be used for lock status input
Live monitoring over FSConf
Connects directly to main panel CAN dataline
DIN rail mountable
