Specification
Frequency / UID Bits / RF Reading Range / Read/Write
| S (Dual Band) | |
| Frequency |
125kHz: EM 13.56MHz: ISO 14443/ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation) , iCASH Card |
| UID Bits | 24~32 (Adjustable) |
| RF Reading Range | 5-15 cm |
| Read/Write | Read/Write |
*MIFARE and MIFARE Classic, MIFARE DESFire, MIFARE Plus, MIFARE Ultralight are registered trademarks of NXP B.V.
RFID Crypto / Communication interface
| S (Dual Band) | ||
| RFID Crypto | CC Certification: 3DES Crypto comply with EAL4+ | |
| Host | RS-485 (9600 bps) SSC (Soyal Security Communication) |
|
| Serial | UART PORT (Only Output) | |
| Wiegand Input | Wiegand 24~34 (support external Wiegand Keyboard) | |
| Wiegand Output | Wiegand Data 0 Data 1 | |
*SSC (SOYAL SECURITY COMMUNICATION) To enchance security of communication
DI/ DO
| DI | LED (Red) LED (Green) Buzzer |
||
| Relay ouput | No | ||
| Open Collect Output | No | ||
Hardware Specifications
| Power Voltage | 12-24VDC | |||
| Power Consumption | <1W | |||

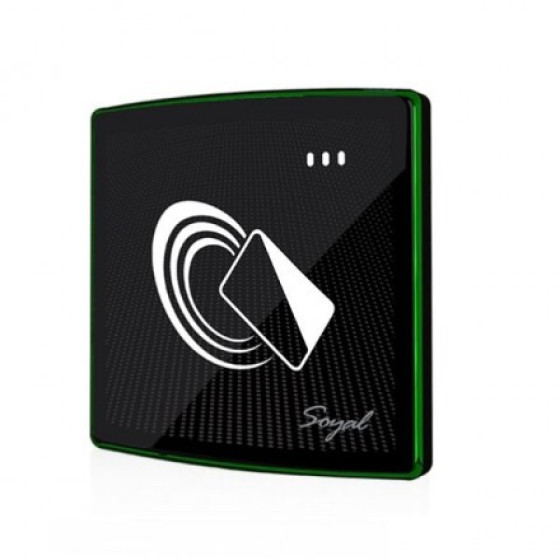

| Indicator | LED | 3 LED (White) Bi-Color LED Frame (Green/Red) |
||
| Buzzer | 1 | |||
| TAMPER | Button Switch (Type A/50mA/30VDC) | |||
| Housing Material | Anti-Scratch PC+ABS / Tempered Glass Panel+ABS (Fire-proof level: 94V0) | |||
| Color | Black | |||
| Keypad | No (Invisible Keypad Function) | |||
| Dimension (mm) | EU | 88(H)X86(W)X34(D) | ||
| US | 110(H)X81(W)X34(D) | |||
| Net Weight(g) | EU | approx. 110 | ||
| US | approx. 120 | |||
| Ingress Protection | IP65 (Surface) | |||
| Environment | Operating Temperature | -20℃ ~ +70℃ | ||
| Storage Temperature | -25℃ to +70℃ | |||
| Operating Humidity | 0%~90% (non-condensing) | |||
| Storage Humidity | 0%~95% (non-condensing) | |||
