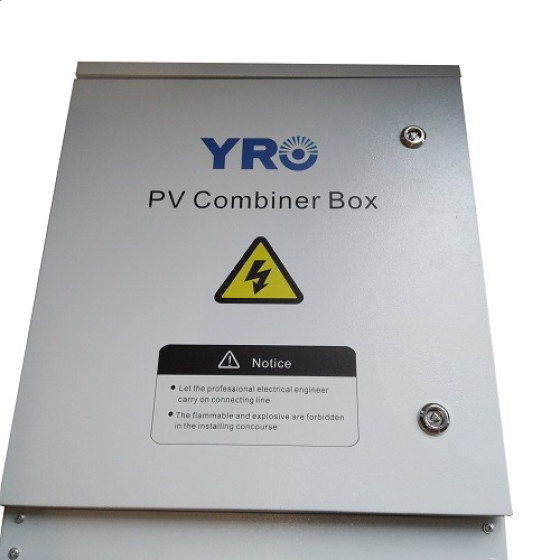

PV Combiner Box, DC 4in-4out, steel
- Ražotājs:
- Modelis:NV820467
- Pieejamība:5 pcs.
304,00€
Noliktavā (5)
PV Combiner Box, DC 4in-4out, IP65
Features:4 input 4 output 1000V DC.DC string box is designed for 4 string PV system.For surge protection and isolating at solar DC side.Lightning protection (TUV CE), waterproof and dustproof IP65.The box is supplied with:1P fuse 30A (8 pcs).DC switch: 4P, 1000V/32A DC (4pcs).DC SPD: 3P, 1000V DC (4pcs).Designed for protection of photovoltaic cells.Certifications: TUV, CE, CB, RoSH.
Technical specifications:Input: 4 string.Output:4 string.Max voltage: 1000V.Max current: 32A.Enclosure material: steel.Safety class: IP65.Dimensions: 325x460x130 mm.Operating temperature: -25°C ~ +55°C.
Warranty: 24 months.
Features:4 input 4 output 1000V DC.DC string box is designed for 4 string PV system.For surge protection and isolating at solar DC side.Lightning protection (TUV CE), waterproof and dustproof IP65.The box is supplied with:1P fuse 30A (8 pcs).DC switch: 4P, 1000V/32A DC (4pcs).DC SPD: 3P, 1000V DC (4pcs).Designed for protection of photovoltaic cells.Certifications: TUV, CE, CB, RoSH.
Technical specifications:Input: 4 string.Output:4 string.Max voltage: 1000V.Max current: 32A.Enclosure material: steel.Safety class: IP65.Dimensions: 325x460x130 mm.Operating temperature: -25°C ~ +55°C.
Warranty: 24 months.
