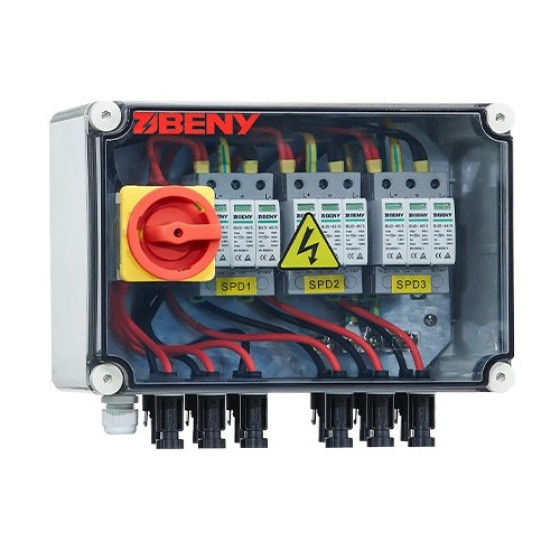

PV Combiner Box, DC 3in-3out, IP66
- Ražotājs:
- Modelis:NV820146
- Pieejamība:5 pcs.
240,72€
Noliktavā (5)
PV Combiner Box, DC 3in-3out, IP66
Features:3 input 3 output 1000V DC.DC string box is designed for 3 string PV system.For surge protection and isolating at solar DC side.Flame retardant rating V0, UV resistance, IP66 waterproof enclosure, degree of resistance to impacts IK10.Set includes MC4 and glands.DC switch:6P, 1000V, 50A (1pcs.).Door clutch easier operating and lockable handle.Patented DC arc extinguishing chamber.Magnetic steels inside ensure rapid and safe extinguishing.Certification: UI508i approval, IEC60947-3 Pv2.DC SPD:3P, 1000V, 40kA. (3pcs.).Designed for solar PV protection.Higher capacity in 20KA (IEC, UL).Response time <25ns.Certification: IEC 61643, UI1449.
Technical specifications:Input: 3 strings.Output: 3 strings.Max voltage: 1000V.Short circuit current per Input (Isc): 15A-30A (changeable).Max current output: 50A.Enclosure material: polycarbonate.Safety class: IP66, IK10, V0.Dimensions: 200x300x150 mm.Input cable glands: PG09, 2.5-16mm.Output cable glands: PG21, 2.5-16mm.Operating temperature: -25°C ~ +60°C.
Warranty: 24 months.
