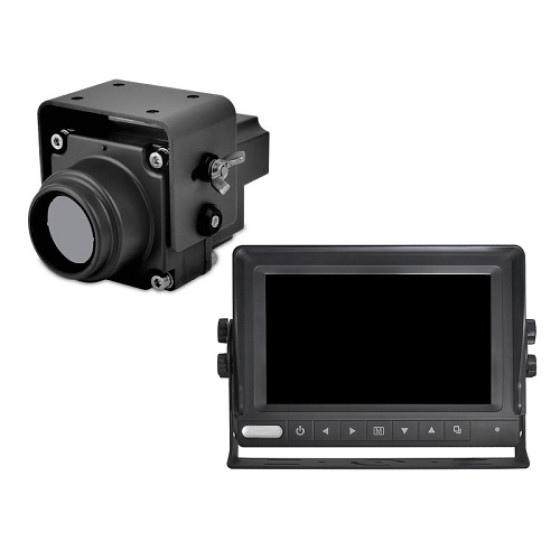

Advanced Night Vision System - Thermal Car Camera and Waterproof Monitor 7"

Thermal imaging camera (384x288 resolution) and the 7-inch TFT-LCD colour monitor (IP69k-rated), compliant with military and industrial standards, are designed to withstand harsh atmospheric conditions and strong vibrations, therefore providing all the visibility you need for safe driving in every circumstances.
 Camera features: An uncooled infrared military-grade microbolometer sensor provides visibility at night or harsh environment conditions. Can provide traffic information at a distance of 350m, without any light source, not affected by blinding glare of oncoming headlights, smoke, fog, dust or rain. Non-focusing fixed lenses provide a clear panoramic view. Advanced anti-shock and vibration resistant technology is specially adapted to the vehicle. 384x288 pixel resolution sensor with fixed lens. Field of view 37.9°×28.5°.  Low energy consumption, up to 6W. An uncooled IR microbolometric sensor helps detect subtle temperature changes and provides effective visibility at a distance of 350m. Protection against reverse polarity and over-voltage. IP67 encapsulation provides resistance to dust and water. Application: can be installed in any type of vehicle, SUV, off-road, boat, buggy, truck or quad. The manufacturing process is controlled according to the ISO TS 16949 international vehicle industry standard.
 Monitor features: 7inch TFT-LCD colour monitor, industrial-grade, IP69k waterproof and pressure-resistant, specially designed for extreme environment application, RGB 800x480 high-resolution, 400cd/m2 high-brightness, with touch button ABS shell, OSD menu function. The monitor features high quality design for extreme environmental conditions such as high humidity, low or high temperatures, sea area, harsh weather conditions, rain, dirt; it is robust, vibration and impact resistant. The monitor display pannel is protected by high transmission PMMA material (of 2mm thinckness). Constant pressure patent ensures reliable seal. Automotive industrial grade digital video processor. Supports two CVBS cameras signal input. OSD menu functions: brightness, mirror/normal image for each camera separately, reversing image delay time, trigger priority, language selection. Sun visor. Heat dissipating aluminium alloy shell. Protection against load dump, overvoltage, short circuit, reverse polarity. LED constant current and constant voltage maintenance function. Wide application: SUVs, ATVs, ambulances, school buses, street sprinklers, horse trailers, waste management vehicles, trucks, forklifts, forestry or agricultural equipment vehicles, sea area, ships, construction vehicles, minecart, various vehicle safety monitoring.
 Camera technical data: Sensor resolution: 384x288. Sensor Type: Uncooled FPA. Field of view: 37.9°×28.5°. Focal length: fixed, >/= 6m. Wavelength: 8-14 microns (micrometers). Power supply: DC 12-32V. Consumption: <6W. Video output: PAL. Frame rate: 50Hz. Focus type: fixed athermatized lens. Shock resistance: GJB150A-2009. Vibration resistance: GJB150A-2009. Electromagnetic compatibility: GJB151A. Operating temperature: -41°C~ +65°C. Storage temperature: -55°C~ +85°C. Protection class: IP67. Weight: 750g. Size: 64x64x115mm.
 Monitor technical data: Display resolution: 800(H) x 480(V) pixels. Active display size: 153.6 x 86.6 mm. Response time: 25ms. Video input: 2-channel, PAL/NTSC. Brightness: 400 cd/m2. Contrast: 500:1. Processor: Industrial grade Techwell. Power supply: DC 11-32V. Consumption: 5W (max.). Vibration resistance: GB/T 2423.56-2018. Surge and load dump protection: ISO16750-2. Operating temperature: -20°C~+70C. Storage temperature: -30°C~ +80°C. Protection class: IP69k. Housing material: ABS plastic, aluminium alloy. Weight: 700g. Size: 220x149x84mm.
 Warranty: 24 months.
