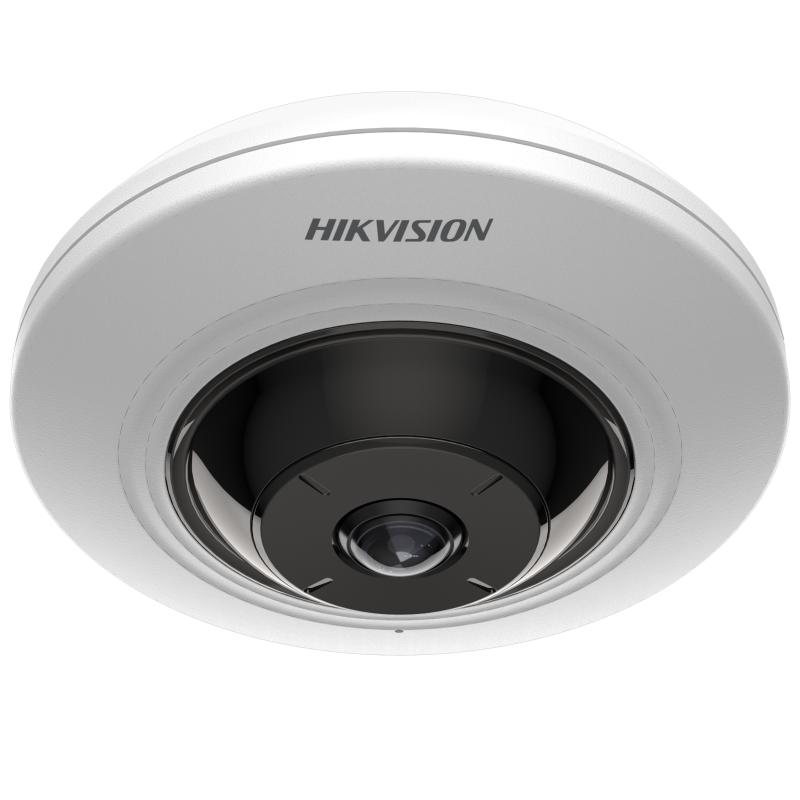

IP Kamera 5MP DS-2CD2955G0-ISU(1.05mm)

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

2560 × 1920

Min. Illumination

Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Lens

Lens Type

Fixed focal lens, 1.05 mm

Focal Length & FOV

1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°

Focus

Fixed

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.25

Depth Of Field

0.1 m to ∞

DORI

DORI

D: 21 m, O: 8 m, R: 4 m, I: 2 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 8 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

Sub-Stream

50 Hz: 25 fps (640 × 480)

60 Hz: 30 fps (640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Region Of Interest (ROI)

1 fixed region for main stream

Fisheye Display

Mount Type

Support wall/table/ceiling mounting

Audio

Audio Type

Mono sound

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200,Hik-Connect,Hik-Central

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Web Browser

Plug-in required live view: IE 10+,

Local service: Chrome 57.0+, Firefox 52.0+

Network Storage

NAS (NFS, SMB/CIFS)


Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,3D DNR

Wide Dynamic Range (WDR)

120 dB

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-In Microphone

-U: Yes

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 12 VDC, 30 A)

Reset Key

Yes

Power Output

12 VDC, max. 100 mA

Event

Basic Event

Motion detection, video tampering alarm, exception

Smart Event

Line crossing detection, intrusion detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output

General

Power

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W
