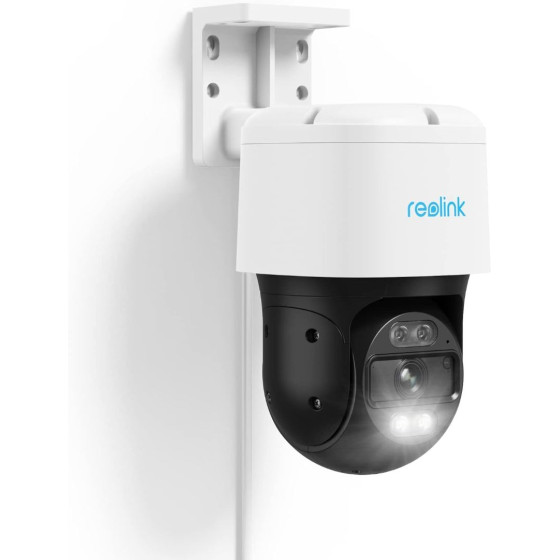

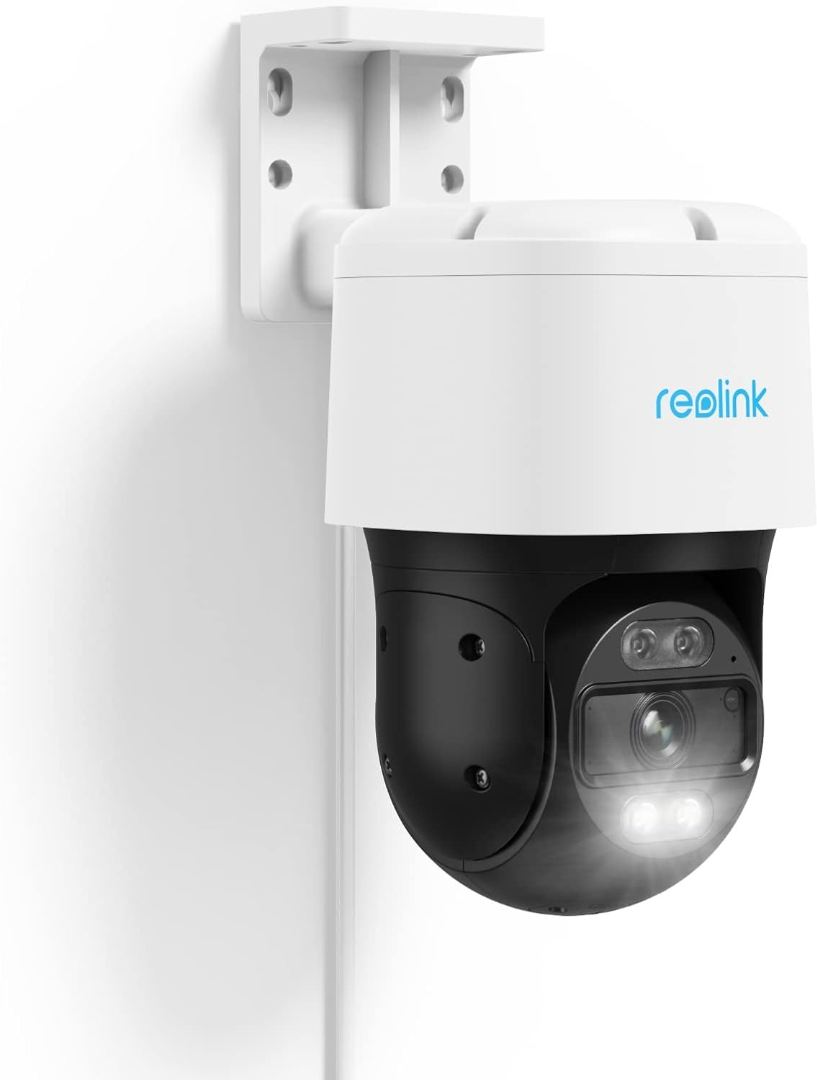

IP Kamera 8MP RLC-830A

Video & Audio

Image Sensor

1/2.7"CMOS Sensor

Video Resolution

3840 x 2160 (8.0 Megapixels) at 25 frames/sec

Lens

f=4mm, fixed; f=1.6

Video Format

H.265

Field of View

• Horizontal: 88°

• Vertical: 46°

Day & Night

IR-cut filter with auto-switching

Infrared Night Vision

Up to 30 Meters(LED: 2pcs/850nm)

Color Night Vision

Spotlight: 2pcs/6500K/450 Lumens

Audio

Two-way audio

Power

PoE

IEEE 802.3af, 48V active

DC Power

DC 12.0 V⎓2 A, < 12 W

Interface

Power

DC Power port

System

Reset button

Ethernet

1*10M/ 100Mbps RJ45

Storage

microSD card slot (max. 256GB)

Audio

Built-in microphone and speaker

Pan & Tilt

Pan &Tilt

Pan: 355°, Tilt: 0°~90°

Pan Speed

12°-90°/s (The speed can be set.)

Tilt Speed

8°-60°/s (The speed can be set.)

Preset

32

Auto Tracking

Available

Software Features

Frame Rate

• Mainstream: 2fps - 25fps (Default: 25fps)

• Substream: 4fps - 15fps (Default: 10fps)

Code Rate

• Mainstream: 4096Kbps -8192Kbps (default: 6144Kbps)

• Substream: 64Kbps -512Kbps (default: 256Kbps)

Compatible Browsers

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection/ person detection/ vehicle detection/ pet detection

Record Mode

Motion activated recording (default); scheduled recording; recording 24/7

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximum User Access

20 users (1 admin account and 19 user accounts); 12 simultaneous video streams (10 substreams and 2 mainstreams)

Work with

Google Assistant

Working Environment

Temperature

Operating Temperature: -10°C~+50°C (14°F~122°F)

Humidity

Operating Humidity: 10% ~ 90%

Waterproof

IP65
