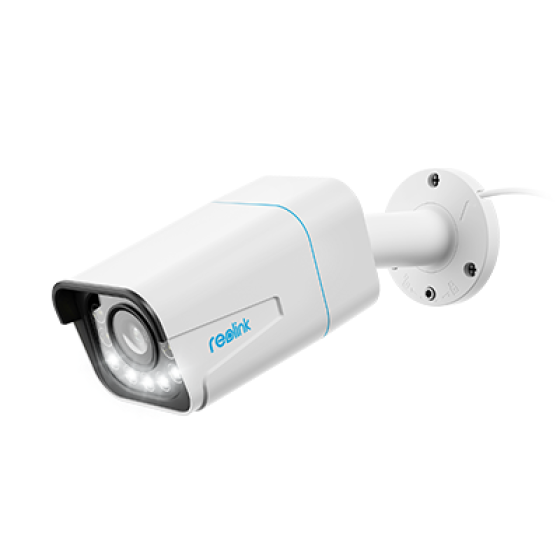

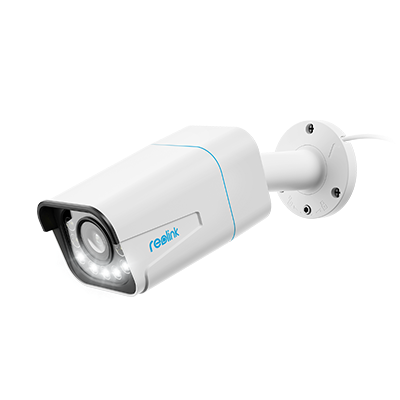

IP Kamera 8MP RLC-811A

Video & Audio

Image Sensor

1/2.8" CMOS Sensor

Video Resolution

Default: 3840 x 2160 (8.0 megapixels) at 25 frames/sec

Lens

f=2.7-13.5mm F=1.6-3.3, with IR cut

Optical Zoom

5X

Video Format

H.265

Field of View

• Horizontal: 105°- 31°

• Vertical: 55°- 17°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

Up to 30 meters (IR LED: 4pcs/28mil/850nm)

Color Night Vision

Spotlight: 5pcs/4W/6500K/450 lumens

Audio

Two-way audio

Power

PoE

IEEE 802.3af, 48V active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

Micro SD card slot (Max. 256GB)

Audio

Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 2fps - 25fps (default: 25fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)

• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 Users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Work with

Google Assistant

Working Environment

Temperature

Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP67
