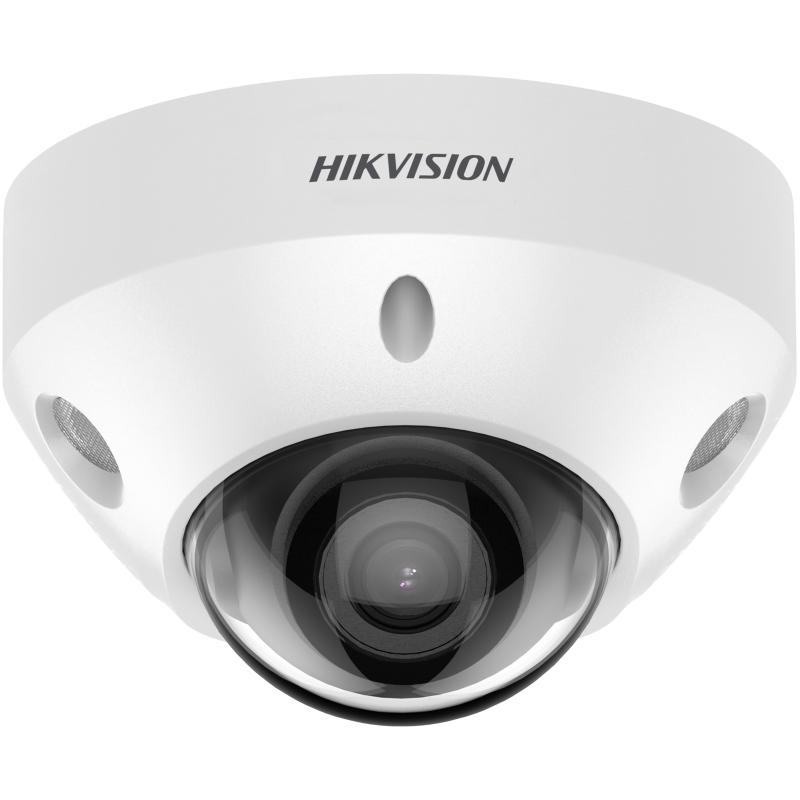

IP Kamera 4MP DS-2CD2547G2-LS

  • Ražotājs:
  • Modelis:
    DS-2CD2547G2-LS
  • SKU:
    DS-2CD2547G2-LS
  • Pieejamība:
    10 pcs.
219,99€
Noliktavā (10)
  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & Night24/7 Color imaging
  • Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

    4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°

  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth Of Field

    2.8 mm: 2.3 m to ∞

    4 mm: 3.2 m to ∞

  • DORI
  • DORI

    2.8 mm:

    D: 58 m, O: 23 m, R: 11 m, I: 6 m

    4 mm:

    D: 77 m, O: 30 m, R: 16 m, I: 8 m

  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage

    NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
  • Built-In MicrophoneYes
  • Audio

    -LS:

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm

    -LS:

    1 input, 1 output (max. 12 VDC, 20 mA)

  • Reset KeyYes
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection

  • General
  • Power

    12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 W

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
