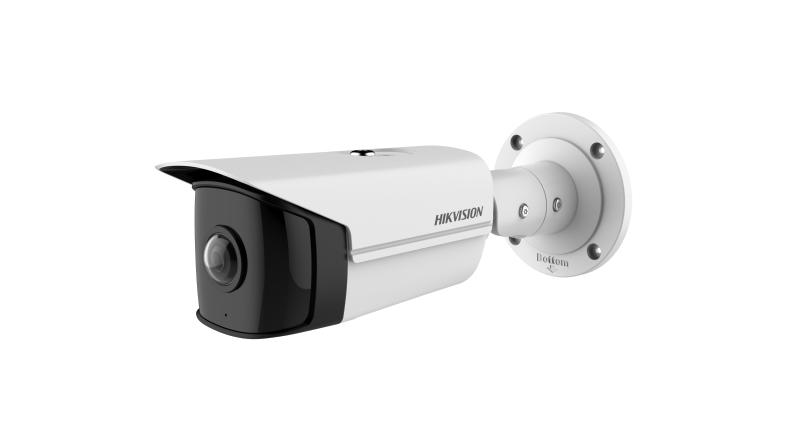

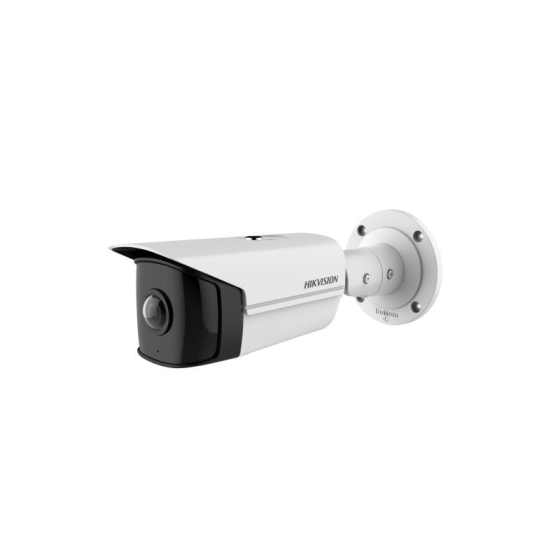

IP Kamera 4MP DS-2CD2T45G0P-I

IP Kamera 4MP DS-2CD2T45G0P-I
  • Ražotājs:
    Hikvision
  • Modelis:
    DS-2CD2T45G0P-I
  • SKU:
    DS-2CD2T45G0P-I
  • Pieejamība:
    10 pcs.
224,20€
Noliktavā (10)



  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. Illumination0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightICR Cut
  • Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture. Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • FocusFixed
  • Lens Type & FOV1.68mm @ F2.0, horizontal FOV 180°, vertical FOV 101°, diagonal FOV 180°
  • ApertureF2.0
  • Lens MountM12
  • DORI
  • DORIDetect: 3.6 m, observe: 1.4 m, recognize: 0.8 m, identify: 0.4 m
  • Illuminator
  • IR Range20 m
  • Wavelength850nm
  • Smart Supplement LightYes
  • Video
  • Max. Resolution2688 × 1520
  • Main Stream

    50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 x 720)

    60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 x 720)

  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 /MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Stream TypeMain stream, Sub-stream
  • Scalable Video Coding (SVC)H.264, H.265
  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host

    Up to 32 users

    3 levels: Administrator, Operator and User

  • Security

    Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

  • Network Storagemicro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in free live view: Chrome45.0+, Firefox52.0+

    Local service: Chrome41.0+, Firefox30.0+

  • Image
  • Day/Night SwitchDay, Night, Atuo, Schedule
  • Image EnhancementBLC;HLC;EIS;Lens Distortion;3D DNR
  • Image SettingsSaturation;brightness;contrast;sharpness;rotate mode;white balance;AGC
  • SNR≥ 50 dB
  • Privacy Mask4 regions of privacy mask
  • Interface
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart EventLine crossing detection, intrusion detecction, unattended baggage detextion, object removal detection, face detection, scene change detection
  • General
  • General Functionprivacy mask;heart;mirror;flash log;password reset via e-mail;pixel counter
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%; PoE: 802.3af, Class 3
  • Power Consumption And Current

    12 VDC, 0.6 A, max. 7.2W

    PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W

  • Power InterfaceΦ5.5 mm coaxial power plug
