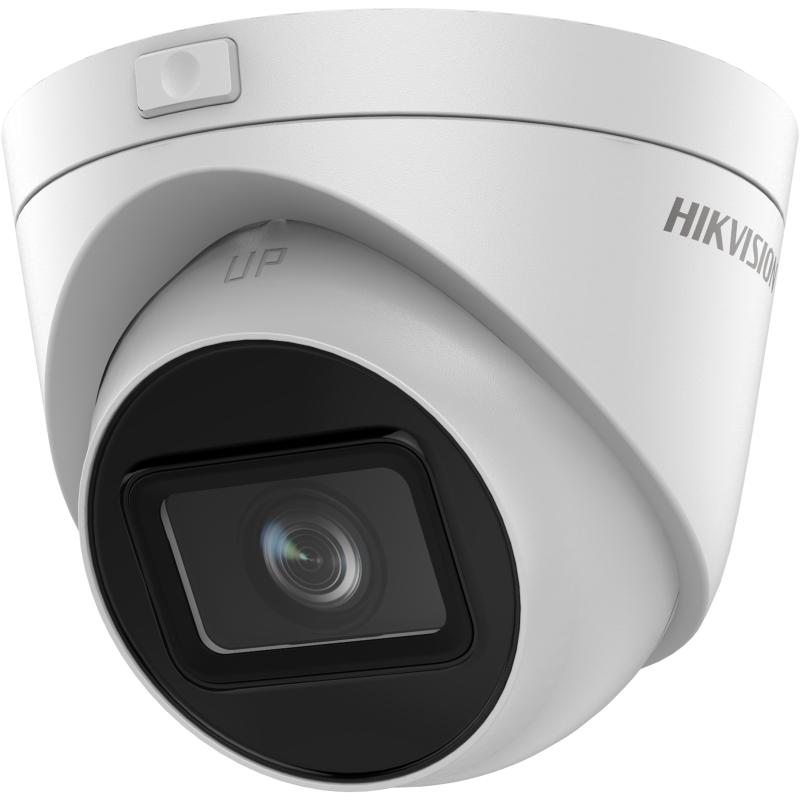

IP Камера 4MP DS-2CD1H43G2-IZ
- Производитель:
- Модель:DS-2CD1H43G2-IZ
- Артикул:DS-2CD1H43G2-IZ
- Доступно:1 шт.
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region(s) for main stream
- Audio
- Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-S: 8 kHz/16 kHz
- Environment Noise Filtering-S: Yes
- Network
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio
-S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
-S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm-S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)
- General
- Power
12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
