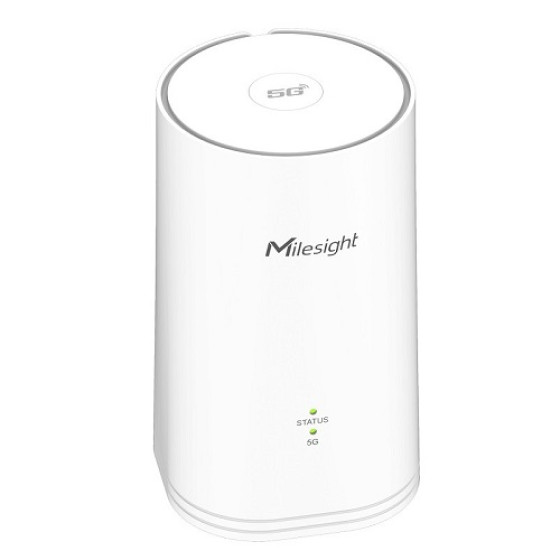

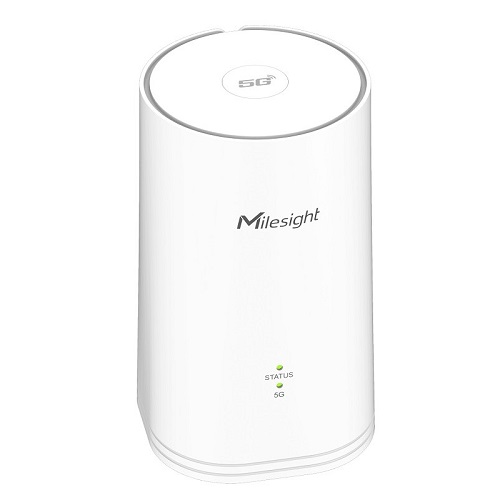

Industrial Cellular Router 5G, 4G LTE, Wi-Fi, PoE, IP67
- Ražotājs:
- Modelis:UF51
- Pieejamība:Nav noliktavā0
790,06€
Nav noliktavā
Industrial cellular router 5G, 4G LTE, Wi-Fi, PoE, IP67
Features: Industrial-grade 5G CPE, with quad-core CPU performance, 5G cellular module, 2.4/5GHz Wi-Fi, 2-port Gigabit Ethernet (PoE), provides ultra-fast and secure network, and also features a compact size suitable for indoor and outdoor applications. High speed and best signal reception is achieved using MIMO technologies, 8 embedded 85G antennas (4x4MIMO) and 4 embedded Wi-Fi antennas (2x2MIMO). It also supports 2-port Gigabit Ethernet switch, serial ports RS232/RS485 and digital I/O, which allow you to scale up M2M application combining data and video in limited time and budget. Security and reliability: global 4G LTE/5G NR (NSA/SA) network, Python SDK, firewall, watchdog, VPN, automatic failover, failback. Easy maintenance for the administrator: simple setup, mass configuration, centralized management of remote devices. Can be applied to smart offices, video surveillance, digital media implementations, industrial automation, traffic applications, robots and so on. IP67 waterproof and dustproof housing with UV protection is suitable for harsh environmental conditions (-40°C~+70°C). Various installation options: pole mounting, wall mounting, desktop, bottom magnetic or lock mounting. Thanks to its elegant and compact design, it fits neatly and nicely into the environment.
Technical data: Hardware: CPU: Qualcomm 4-core ARM Cortex-A7, 716.8 MHz. Memory: RAM 512MB DDR3 + 8GB Flash. Cellular interface: Network: 5G, 4G LTE. Antennas: 8 (internal). SIM slot: 1x mini SIM-2FF. Ethernet interface: Ports: 1x WAN + 1x LAN/or 2x LAN. PoE: 1x 802.3af (WAN/LAN). Speed: 2x 10/100/1000Mbps. Wi-Fi interface: Wireless standards: IEEE 802.11b/g/n (2.4GHz); IEEE 802.11a/n/ac (5GHz). Antennas: 4 (internal). Transmission power: max. 26dBm (2.4GHz), 26.4dBm (5GHz). Reception sensitivity 2.4GHz: 802.11b: GNSS: Antenna: 1 (internal). Technologies: GPS/ GLONASS/ Beidou/ Galileo/ QZSS. Serial interface: Ports: 1x RS485 / or 1x RS232. Baud rate: 300bps-230400bps. Connector: 3.5 mm. Do/DO: Contacts: 1x DI + 1x DO. Max. V/A: 0.3A@30VDC (DO). Connector: 3.5 mm. Software: Network protocols: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH. VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE, MilesightVPN. Security: access control, DMZ, port mapping, MAC mapping, SPI firewall, DoS and DoS protection, filtering (IP and domain), IP bandwidth. Other: Power input: 9-48V DC / PoE (802.3af). Power consumption: <7W. Power connector: 2-pin 3.5mm. Reset button: 1. LED indicators: 1x status, 1x cellular connection. Safety class: IP67 (water and dust resistance). Operating temperature: -40°C~+70°C. Operating humidity: 0-95%RH (non-condensing). Housing material: polycarbonate + metal. Installation: placed on a table top, fixed on a pole, attached to a wall, etc. Size: 105x110x187mm. Color: white.
Warranty: 24 months.
Features: Industrial-grade 5G CPE, with quad-core CPU performance, 5G cellular module, 2.4/5GHz Wi-Fi, 2-port Gigabit Ethernet (PoE), provides ultra-fast and secure network, and also features a compact size suitable for indoor and outdoor applications. High speed and best signal reception is achieved using MIMO technologies, 8 embedded 85G antennas (4x4MIMO) and 4 embedded Wi-Fi antennas (2x2MIMO). It also supports 2-port Gigabit Ethernet switch, serial ports RS232/RS485 and digital I/O, which allow you to scale up M2M application combining data and video in limited time and budget. Security and reliability: global 4G LTE/5G NR (NSA/SA) network, Python SDK, firewall, watchdog, VPN, automatic failover, failback. Easy maintenance for the administrator: simple setup, mass configuration, centralized management of remote devices. Can be applied to smart offices, video surveillance, digital media implementations, industrial automation, traffic applications, robots and so on. IP67 waterproof and dustproof housing with UV protection is suitable for harsh environmental conditions (-40°C~+70°C). Various installation options: pole mounting, wall mounting, desktop, bottom magnetic or lock mounting. Thanks to its elegant and compact design, it fits neatly and nicely into the environment.
Technical data: Hardware: CPU: Qualcomm 4-core ARM Cortex-A7, 716.8 MHz. Memory: RAM 512MB DDR3 + 8GB Flash. Cellular interface: Network: 5G, 4G LTE. Antennas: 8 (internal). SIM slot: 1x mini SIM-2FF. Ethernet interface: Ports: 1x WAN + 1x LAN/or 2x LAN. PoE: 1x 802.3af (WAN/LAN). Speed: 2x 10/100/1000Mbps. Wi-Fi interface: Wireless standards: IEEE 802.11b/g/n (2.4GHz); IEEE 802.11a/n/ac (5GHz). Antennas: 4 (internal). Transmission power: max. 26dBm (2.4GHz), 26.4dBm (5GHz). Reception sensitivity 2.4GHz: 802.11b: GNSS: Antenna: 1 (internal). Technologies: GPS/ GLONASS/ Beidou/ Galileo/ QZSS. Serial interface: Ports: 1x RS485 / or 1x RS232. Baud rate: 300bps-230400bps. Connector: 3.5 mm. Do/DO: Contacts: 1x DI + 1x DO. Max. V/A: 0.3A@30VDC (DO). Connector: 3.5 mm. Software: Network protocols: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH. VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE, MilesightVPN. Security: access control, DMZ, port mapping, MAC mapping, SPI firewall, DoS and DoS protection, filtering (IP and domain), IP bandwidth. Other: Power input: 9-48V DC / PoE (802.3af). Power consumption: <7W. Power connector: 2-pin 3.5mm. Reset button: 1. LED indicators: 1x status, 1x cellular connection. Safety class: IP67 (water and dust resistance). Operating temperature: -40°C~+70°C. Operating humidity: 0-95%RH (non-condensing). Housing material: polycarbonate + metal. Installation: placed on a table top, fixed on a pole, attached to a wall, etc. Size: 105x110x187mm. Color: white.
Warranty: 24 months.
