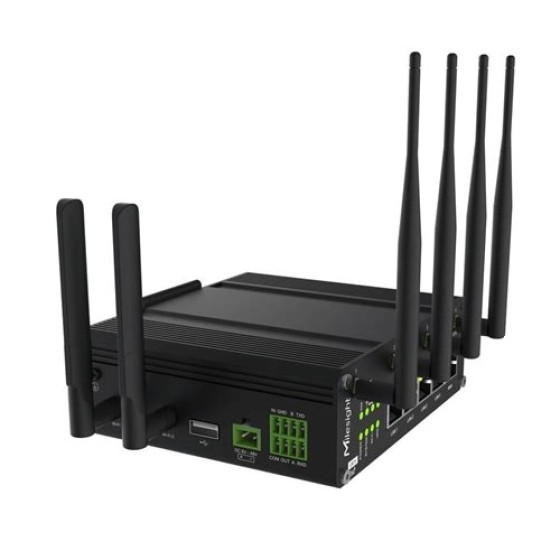

Industrial Cellular Router 5G, 4G LTE, Wi-Fi
- Ražotājs:
- Modelis:UR75
- Pieejamība:Nav noliktavā0
782,94€
Nav noliktavā
Industrial cellular router 5G, 4G LTE, Wi-Fi
The industrial-grade high-performance 5G router is designed for a variety of M2M and IoT applications. Featuring quad-core processor with big memory and 5G cellular module that supports global WCDMA, 4G LTE and 5G sub-6GHz NSA and SA networks, 5-port gigabit Ethernet, ensures fast and secure internet connection. Meanwhile it also supports RS232, RS485 and digital I/O, which enable users to scale up M2M application by combining data collection and high speed transmission in limited time and budget. Dual carrier aggregation (2CC CA) is supported in the 5G Sub-6GHz, enabling wider signal coverage with superb download speed up to 4.67Gbps. The USB Type-C interface can be used for data transfer, power supply, network supply and debug. Easy maintenance for the administrator: DeviceHub simple setup, mass configuration, centralized management of remote devices, user-friendly web environment. The router is particularly suitable for smart grid, digital media installations, industrial automation, telemetry equipment, medical device, digital factory, finance, payment device, environment protection, water conservancy and so on. Various installation options: desktop, wall mounting or DIN rail mounting. Supports Wi-Fi 6 (2.4/5GHz) up to 1.8Gbps speed (optional).
Technical specifications: Hardware: CPU: Qualcomm 4-core ARM Cortex-A55, 2GHz. Memory: RAM 1GB LDDR4 + 1GB NAND Flash. Cellular interface: Network: 5G NR SA & NSA/ 4G LTE/ WCDMA. Frequencies: 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78. LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32. LTE TDD: B38/B40/B41/B42/B43. WCDMA: B1/B5/B8. Antennas: 4x (50? SMA F connectors). SIM slots: 2x mini SIM-2FF. Ethernet interface: Ports: 1x WAN + 4x LAN. PoE: 4x 802.3af/at PoE on PSE LAN ports (optional). Rate: 5x 10/100/1000Mbps. Wi-Fi interface (optional): Wireless standards: IEEE 802.11b/g/n/ax (2.4GHz); IEEE 802.11a/n/ac/ax (5GHz). Antennas: 4x (50? RP-SMA F connectors), 2x2MIMO. Max bit rate: 600 Mbps (2.4GHz), 1200 Mbps (5GHz). Security: WPA/ WPA2/ WEP/ TKIP/ AES. GNSS: Antenna: 1 (50? SMA F connector). Technologies: GPS/ GLONASS/ Beidou/ Galileo/ QZSS. Serial interface: Ports: 1x RS485 + 1x RS232. Baud rate: 300bps-230400bps. Connector: 3.5 mm. DI/DO: Ports: 1x DI + 1x DO. Max. V/A: 0.3A@30V DC (DO). Connector: 3.5 mm. Software: Network protocols: IPv4/IPv6, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLANs etc. VPN: IPsec, OpenVPN, PPTP, L2TP, MilesightVPN. Security: Access control, DMZ, port forwarding, SYN-Flood, filtering (IP, MAC and domain). Other: Power input: 9-48V DC / 5V, 3A via USB Type-C interface. Power consumption: typical 2.8W, max. 5.5W (with Wi-Fi typical 7W, max. 13.7W). Power connector: 2-pin 3.5mm. Reset button: 1. LED indicators: 1x system, 1x SIM1, 1x SIM2. Safety class: IP30. Operating temperature: -30°C~+60°C. Operating humidity: 0-95%RH (non-condensing). Housing material: metal. Installation: desktop, wall-mounting, DIN rail mounting. Size: 135x115x36.4mm. Color: black.
Warranty: 24 months.
