Industrial Cellular Router 4G/LTE, PoE, Wi-Fi
- Ražotājs:
- Modelis:UR32L04EUPW
- Pieejamība:Nav noliktavā0
290,00€
Nav noliktavā

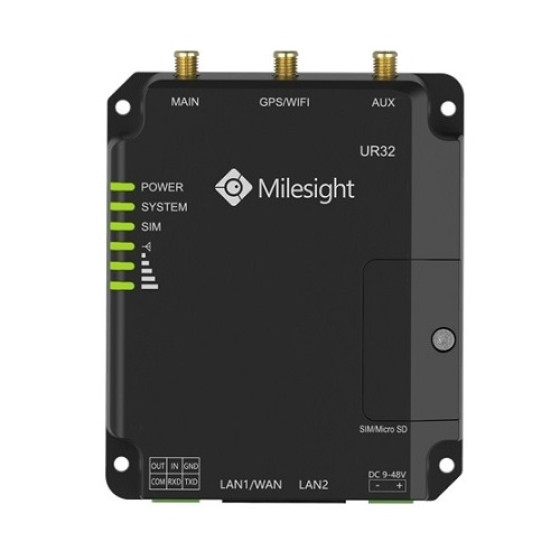

Industrial Cellular Router 4G / LTE, PoE, Wi-Fi.
Features:Industrial LTE router is designed for wireless data transmission over 4G LTE CAT4/3G mobile networks.NXP industrial grade processor.Industrial Cellular Router links remote devices in an environment where communication technologies are constantly changing. Integrating embedded cellular modem and dual SIM function, the UR32 provides 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink. It also has 2 fast Ethernet ports and supports Wi-Fi that compliance with 802.11b/g/n standard and a wide range of network protocols such as SNMP, Modbus Bridge, RIP, OSPF.All these capabilities deliver users an uninterrupted internet access.The router supports a wide operating temperature range from -40°C to +70°C. Robust housing.Low power consumption: from 1.9W in normal mode to max. 2.4W.
Technical specifications:Supply voltage: 9-48V DC / 2x PoE IEEE802.3AF / AT. Power consumption: 1.9W (normal mode), max. 2.4W (without PoE).Antenna: 3x50om SMA connector.Working temperature: -40~+70°C.Working humidity: 0-95%HR non condensing.Size: 180x90x26 mm. Safety class: IP30. Case material: metal. Installation: desktop / wall / on DIN rail. Weight: 271g.Hardware:CPU: 528MHz, ARM Cortex-A7. RAM: 128Mb DDR3. Flash memory: 128 Mb. Extendable Storage: 1x Micro SD. SIM cards: 2x Mini SIM-2FF or 1xSim+1xSD. Reset button: 1x RST. LED indicator: 1x power supply, 1x system, 1x SIM, 3x signal strength. Built-in: watchdog, timer.Software:Network protocols: IPv4 / IPv6, PPP, PPPoE, SNMP v1 / v2c / v3, TCP, UDP, DHCP, RIPv1 / v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH and others. VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE. Security: Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS & DDoS Protection, Filtering (IP & Domain), IP Passthrough. Management: Web, CLI, SMS, On-demand dial up, SNMP v1 / v2 / v3, DeviceHub.Ethernet:Port: 1x WAN / LAN + 1x LAN. Data transfer rate: 10Mbps / 100Mbps (IEEE 802.3). PoE: 2x IEEE802.3AF / AT on LAN ports.Wi-Fi:Wireless standards: IEE802.11b/g/n.Frequency: 2.4GHz.Transmission power:IEE802.11b: 16 dBm +/- 1.5 dBm (11 Mbps). IEE802.11g: 14 dBm +/- 1.5 dBm (54 Mbps). IEE802.11n: 13 dBm +/- 1.5 dBm (65 Mbps, HT20 / 40MCS7).Security: WPA/WPA2 authentication, WEP/TKIP/AES encryption.
Warranty: 24 months.
