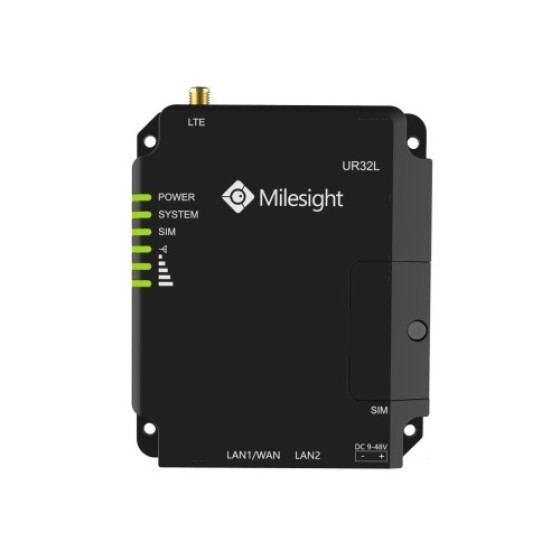

Industrial Cellular Router 4G/LTE, PoE
- Ražotājs:
- Modelis:UR32LL04EUP
- Pieejamība:Nav noliktavā0
242,00€
Nav noliktavā
Industrial Cellular Router 4G / LTE, PoE.
Features:Industrial LTE router is designed for wireless data transmission over 4G LTE CAT4/3G mobile networks.NXP industrial grade processor.Industrial Cellular Router links remote devices in an environment where communication technologies are constantly changing. Integrating embedded cellular modem and SIM function, the UR32 provides 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink. It also has 2 fast Ethernet ports and supports PoE and a wide range of network protocols such as SNMP, Modbus Bridge, RIP, OSPF.All these capabilities deliver users an uninterrupted internet access.The router supports a wide operating temperature range from -40°C to +70°C. Robust housing.Low power consumption: from 1.9W in normal mode to max. 2.4W.
Technical specifications:Supply voltage: 9-48V DC / 2x PoE IEEE802.3AF / AT. Power consumption: 1.9W (normal mode), max. 2.4W (without PoE).Antenna: 1x50m SMA connector.Working temperature: -40~+70°C.Working humidity: 0-95%HR non condensing.Size: 180x90x26 mm. Safety class: IP30. Case material: metal. Installation: desktop / wall / on DIN rail. Weight: 271g.Hardware:CPU: 528MHz, ARM Cortex-A7. RAM: 128Mb DDR3. Flash memory: 128 Mb. SIM card: 1x Mini SIM-2FF. Reset button: 1x RST. LED indicator: 1x power supply, 1x system, 1x SIM, 3x signal strength. Built-in: watchdog, timer.Software:Network protocols: IPv4 / IPv6, PPP, PPPoE, SNMP v1 / v2c / v3, TCP, UDP, DHCP, RIPv1 / v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH and others. VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE. Security: Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS & DDoS Protection, Filtering (IP & Domain), IP Passthrough. Management: Web, CLI, SMS, On-demand dial up, SNMP v1 / v2 / v3, DeviceHub.Ethernet:Port: 1x WAN / LAN + 1x LAN. Data transfer rate: 10Mbps / 100Mbps (IEEE 802.3). PoE: 2x IEEE802.3AF / AT on LAN ports.Security: WPA/WPA2 authentication, WEP/TKIP/AES encryption.
Warranty: 24 months.
