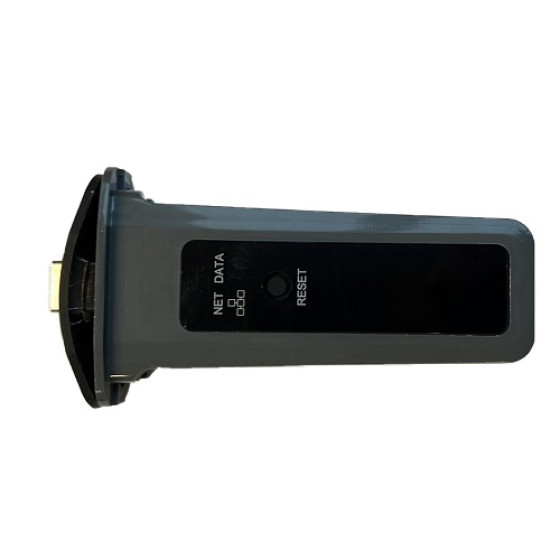

Wi-Fi Interface for MUST inverters PRO series
Features: The interface is designed to link the Must inverter parameters to the Cloud server via Wi-Fi and monitor the operation of the solar power plant and produced energy. The device is installed on the solar inverter to remotely detect and potentially troubleshoot PV system failures and to update the inverter software. It has strong anti-interference capability and is easy to connect and operate (plug and play function). USB stick with 100m coverage and built-in memory connects your PV system to Wi-Fi. Can also be fixed with screws. Protection level - IP65, resistant to extreme temperatures. Suitable for Must Pro series inverters (Guaranteed compatibility with Must PV1800 series).
Technical specifications: Max. current: 500mA (5V). Input voltage range: DC 5V ~ DC 28V. Built-in antenna: 2.5dBi. Max. signal range: 100 m. Supported network: Wi-Fi 2.4GHz (2412-2484MHz). Wi-Fi communication protocol: IEE802.11 b/g/n. Wi-Fi transmitting power: max. 18.5dbm (70mW). Wi-Fi data transfer rate: max. 72Mbps. Data collecting frequency: 1.5s. Network protocol: Modbus-TCP. Interface: USB Type-A. Operating temperature: -30°C ~ +85°C. Dimensions: 96x75x33 mm. Weight: 40g. Certificates: CE, RoHS.
Supported inverters: Must PV18, PV35 series VPM, VHM, PRO.
Warranty: 24months. Download MUSTWIFIPlug-installation.pdf
