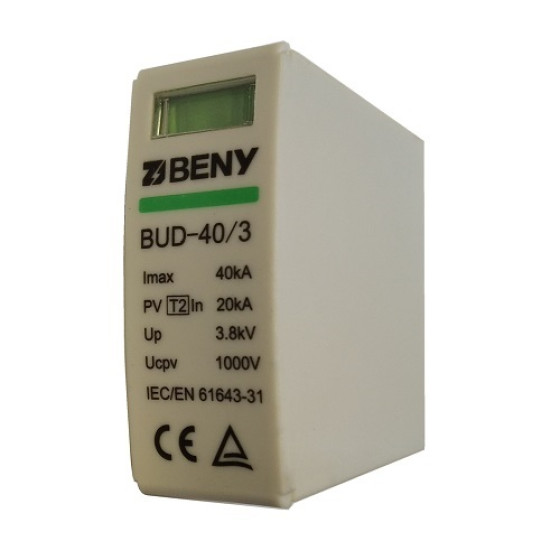

PV SPD Spare Module 1000V DC, 40kA, T2
- Ražotājs:
- Modelis:NV821167
- Pieejamība:Nav noliktavā0
15,98€
Nav noliktavā
PV SPD spare module 1000V, 40kA, Type2. Suitable only for PV combiner boxes: NV820122, NV820139, NV820146, NV820153.
Features: Solar DC SPD protects the solar equipments like solar panels and solar inverter from surges damage or overvoltage. 40kA, suitable for mounting on Din rail. Thermal disconnect inside with fault indication. SPD type 2 according to EN 50539-11.
Specifications: Open voltage max: 1000 V. Max. discharge current (Imax)(8/20µ): 40kA. Nominal discharge current (In) (8/20µ): 20kA. Voltage protection level: Warranty: 24 months.
Features: Solar DC SPD protects the solar equipments like solar panels and solar inverter from surges damage or overvoltage. 40kA, suitable for mounting on Din rail. Thermal disconnect inside with fault indication. SPD type 2 according to EN 50539-11.
Specifications: Open voltage max: 1000 V. Max. discharge current (Imax)(8/20µ): 40kA. Nominal discharge current (In) (8/20µ): 20kA. Voltage protection level: Warranty: 24 months.
