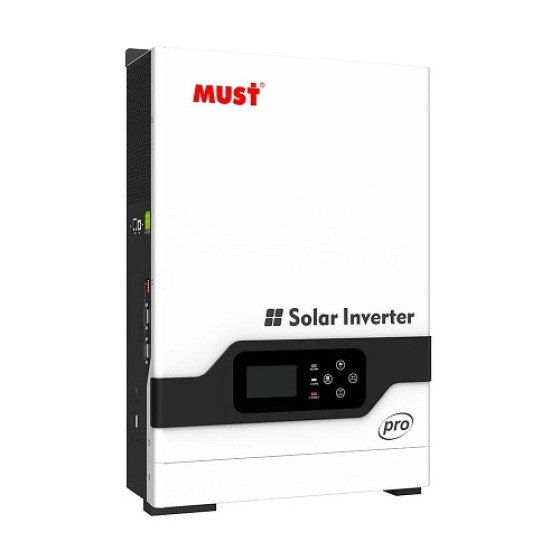

Inverter MUST PV18-3024PRO, 3kW, 1-phase, 24V, 80A MPPT, 450V
- Ražotājs:
- Modelis:NV820696
- Pieejamība:1 pcs.
512,47€
Noliktavā (1)
Solar inverter MUST PV18-3024PRO, 3kW, 1-phase, 24V, 80A MPPT, 450V
Features: Multifunction inverter/charger, combining functions of inverter, MPPT 80A solar charger and battery charger to offer uninterruptible power support with portable size. No battery is required for this inverter. The LCD display allows you to set operating parameters and charger priorities. Rated power 3kW. The maximum PV open circuit voltage is 450V DC and the MPPT voltage is 150~430V DC, allowing full use of solar energy. Built-in MPPT 80A solar charge controller. Combining solar system, AC utility, and battery power source to supply continuous power. Generator compatibility. Support USB, RS485 monitoring functions. Protection against overload, short circuit and deep discharge. CE, SAA, ISO9001 certified.
Technical specifications: Battery voltage: 24V DC. Rated power: 3000W. Surge power: 6000VA. Waveform: pure sine wave. Transfer time: 10ms/20ms. Frequency: 50/60Hz. PV array open circuit voltage max: 450V DC. MPPT voltage range: 150~430V DC. Max. Solar charge current: 80A. PV array power max: 1500W. Display: LCD. Operating temperature: 0°C~+50°C. Dimensions: 272x355x100mm. Weight: 11kg.
Warranty: 24 months.
Specifications
Warranty:
The warranty of the voltage converter (inverter) is valid from the day when we (the seller) is provided with the serial number of the inverter, the purchase invoice, a certified electrician's certificate about the installed:
1) Lightning protection and overvoltage limiter (on the input side)
2) Lightning protection (between solar panels and inverter)
3) DC voltage switch between panels and inverter
4) Dedicate grounding for solar panels separated from grounding of the house
The 2-year (24-month) manufacturer's warranty begins from the day of purchase, but comes into effect only after submission of these documents. Note: Lightning strike is not a valid warranty claim, it is classified as insurance claim.
Download User Manual
Features: Multifunction inverter/charger, combining functions of inverter, MPPT 80A solar charger and battery charger to offer uninterruptible power support with portable size. No battery is required for this inverter. The LCD display allows you to set operating parameters and charger priorities. Rated power 3kW. The maximum PV open circuit voltage is 450V DC and the MPPT voltage is 150~430V DC, allowing full use of solar energy. Built-in MPPT 80A solar charge controller. Combining solar system, AC utility, and battery power source to supply continuous power. Generator compatibility. Support USB, RS485 monitoring functions. Protection against overload, short circuit and deep discharge. CE, SAA, ISO9001 certified.
Technical specifications: Battery voltage: 24V DC. Rated power: 3000W. Surge power: 6000VA. Waveform: pure sine wave. Transfer time: 10ms/20ms. Frequency: 50/60Hz. PV array open circuit voltage max: 450V DC. MPPT voltage range: 150~430V DC. Max. Solar charge current: 80A. PV array power max: 1500W. Display: LCD. Operating temperature: 0°C~+50°C. Dimensions: 272x355x100mm. Weight: 11kg.
Warranty: 24 months.
Specifications
| Default battery system voltage | 24V DC |
| Inverter Output | |
| Rated power | 3000VA / 3000W |
| Surge power | 6000W |
| Waveform | pure sine wave |
| AC voltage regulation (Battery mode) | 230V AC (setting) |
| Transfer time | 10ms (UPS/VDE4105) / 20ms(APL) |
| Input AC | |
| Voltage | 230V AC |
| Selectable voltage range | 170~280V AC(UPS)/ 90~280V AC(APL)/ 184~253V AC(VED4105) |
| Frequency range | 50Hz / 60Hz (Auto sensing) |
| Efficiency | |
| Inverter efficiency (peak) | 93% |
| Battery | |
| Normal voltage | 24V DC |
| Floating charge voltage | 27.4V DC |
| Overcharge protection | 30V DC |
| Solar charger & AC charger | |
| Maximum PV array open circuit voltage | 450V DC |
| PV array MPPT voltage range | 150~430V DC |
| Maximum PV current | 18A |
| Maximum solar charge current | 80Amp |
| Maximum AC charge current | 60Amp |
| Maximum charge current | 80Amp |
| General specifications | |
| Dimensions(W*H*D) | 272*355*100 mm |
| Package dimensions(W*H*D) | 540*395*241 mm |
| Net weight | 11 kg |
| Gross weight | 12 kg |
| Operating temperature | 0°C to 50 °C |
| Humidity range (non-condensing) | 5% - 95% |
| Storage temperature | -15°C to 60 °C |
The 2-year (24-month) manufacturer's warranty begins from the day of purchase, but comes into effect only after submission of these documents. Note: Lightning strike is not a valid warranty claim, it is classified as insurance claim.
Download User Manual
